ECU DATA SHEET 2.0 – ECU Repair Software + PCB Schematics

Description

🧰 ECU DATA SHEET 2.0 – ECU Repair Software + PCB Schematics

🔐 Licensed Version Included
🖥️ Works on: Windows 7, Windows 8, Windows 10

⚙️ What This Software Does

💡 ECU Repair & Diagnostic Tool

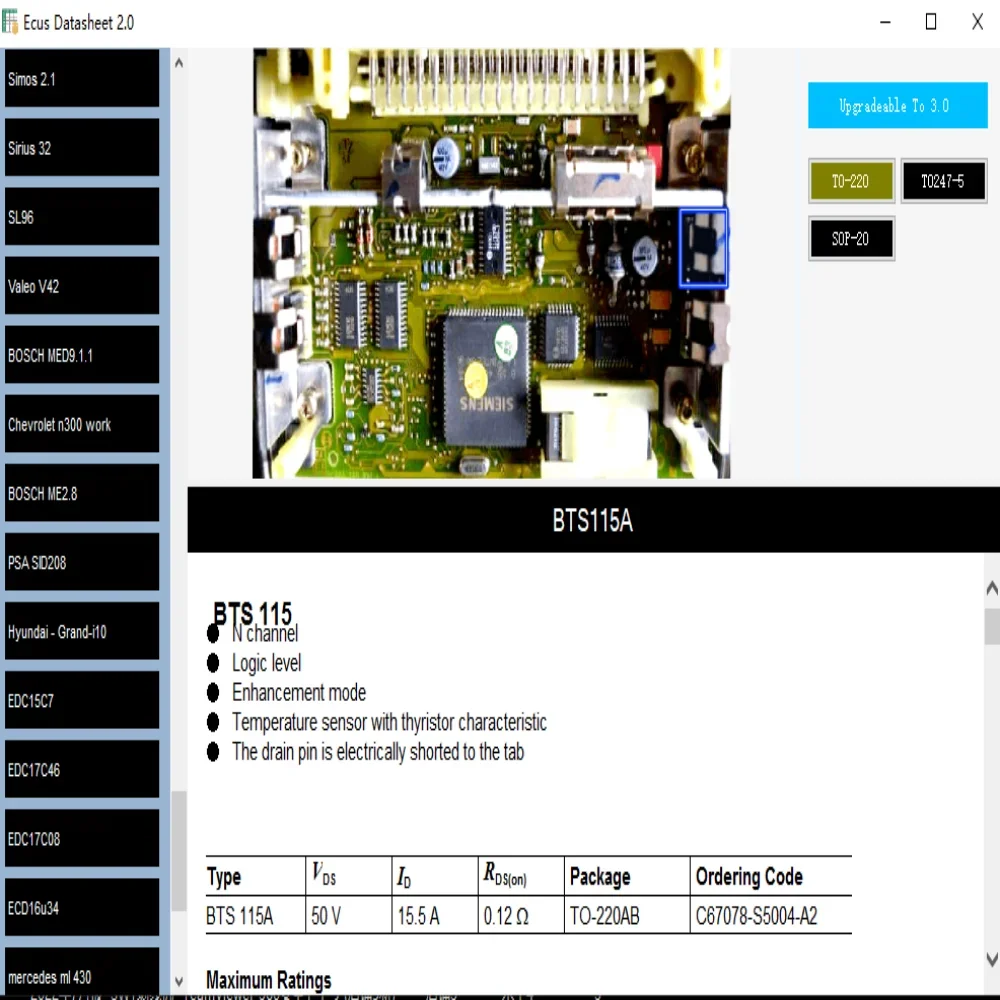

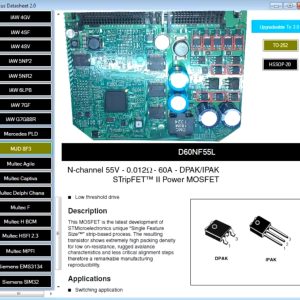

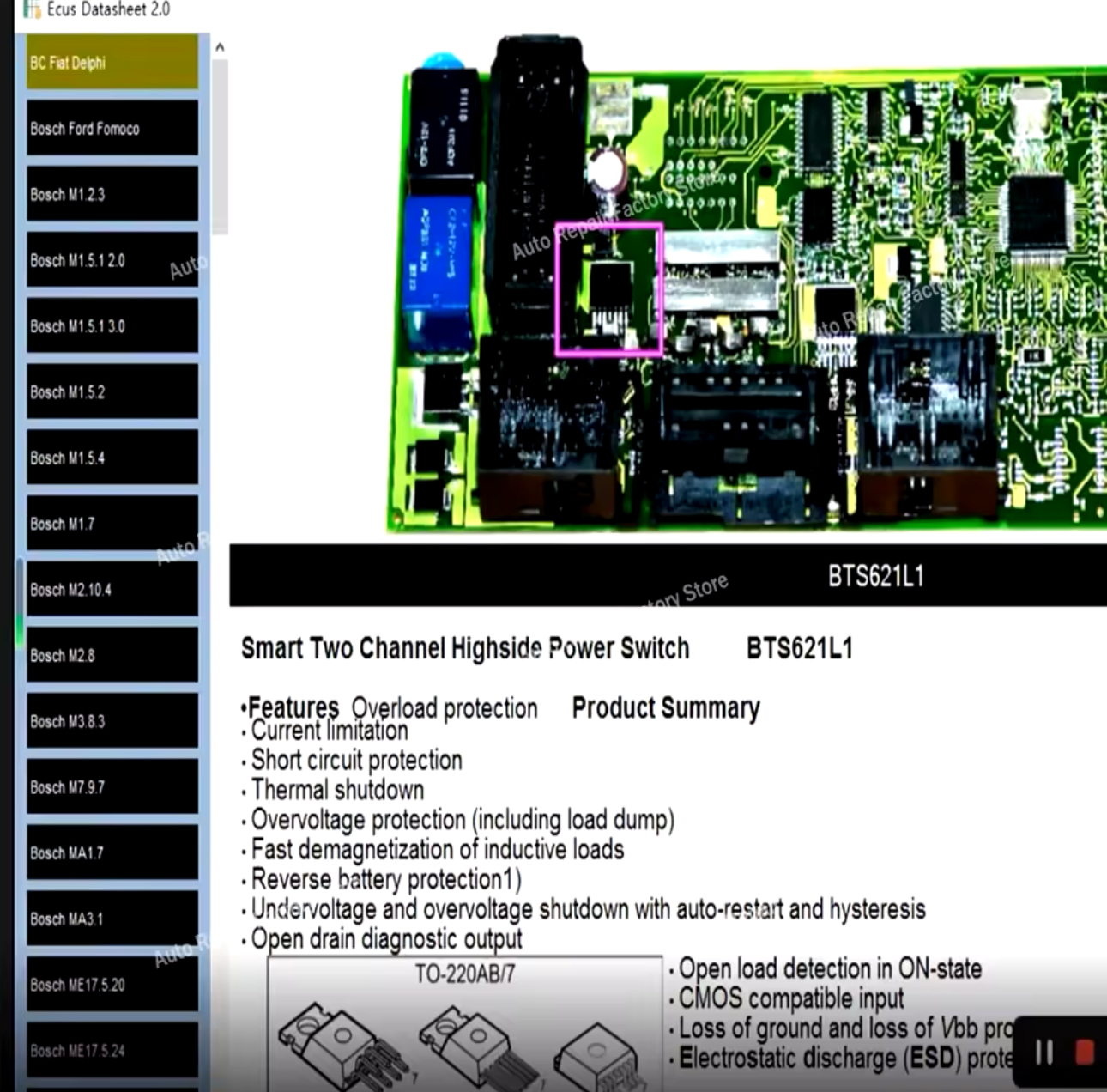

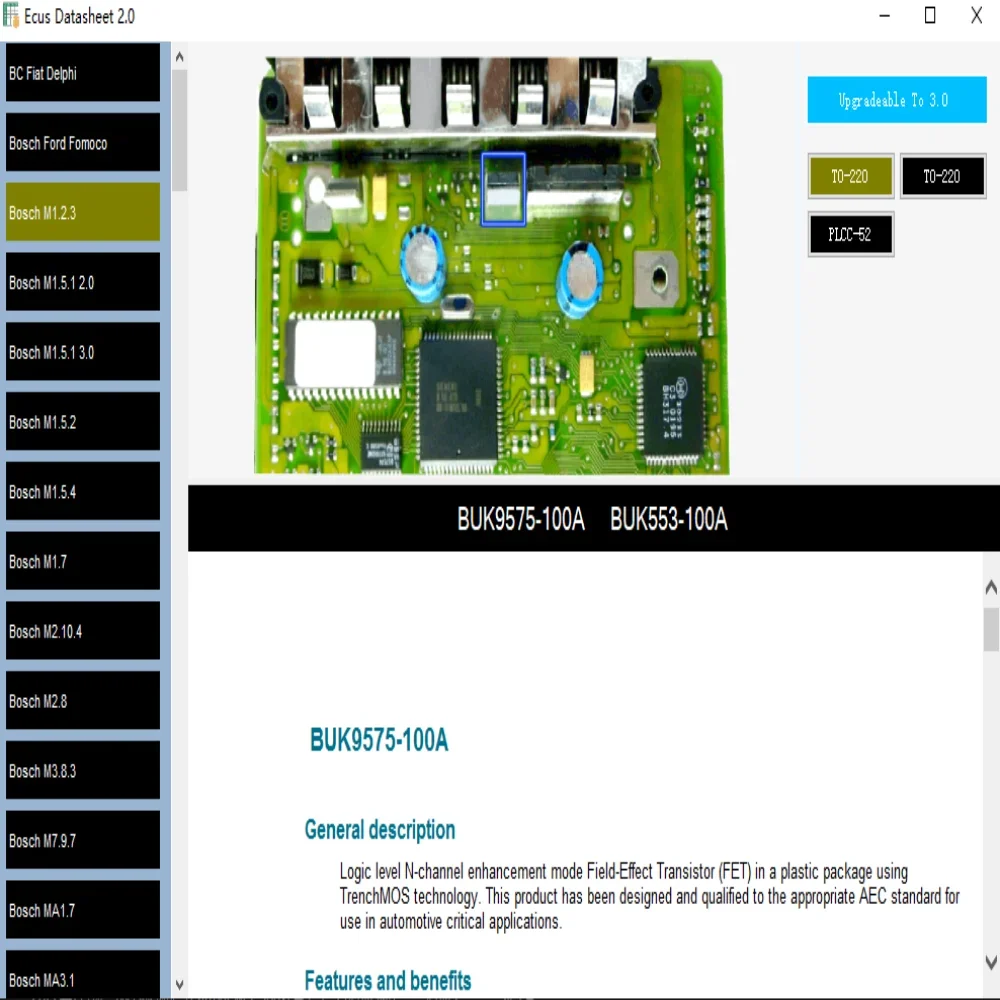

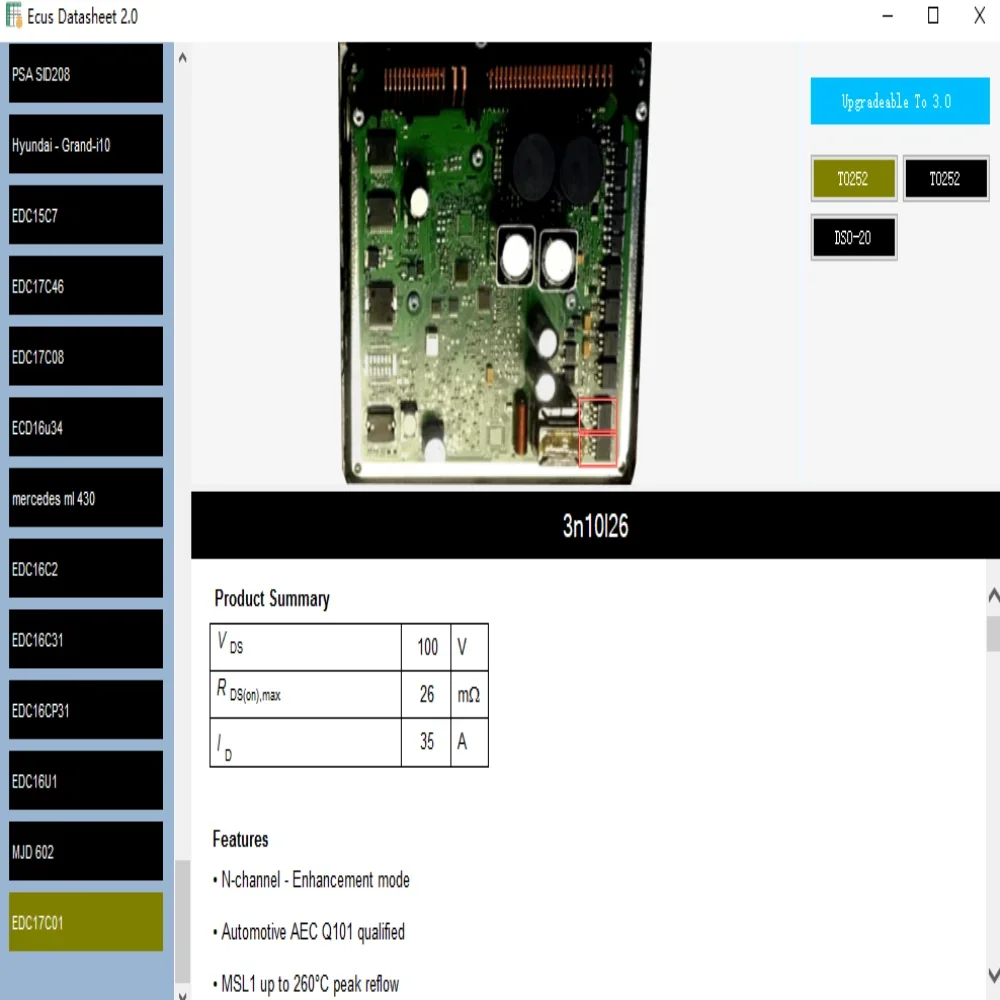

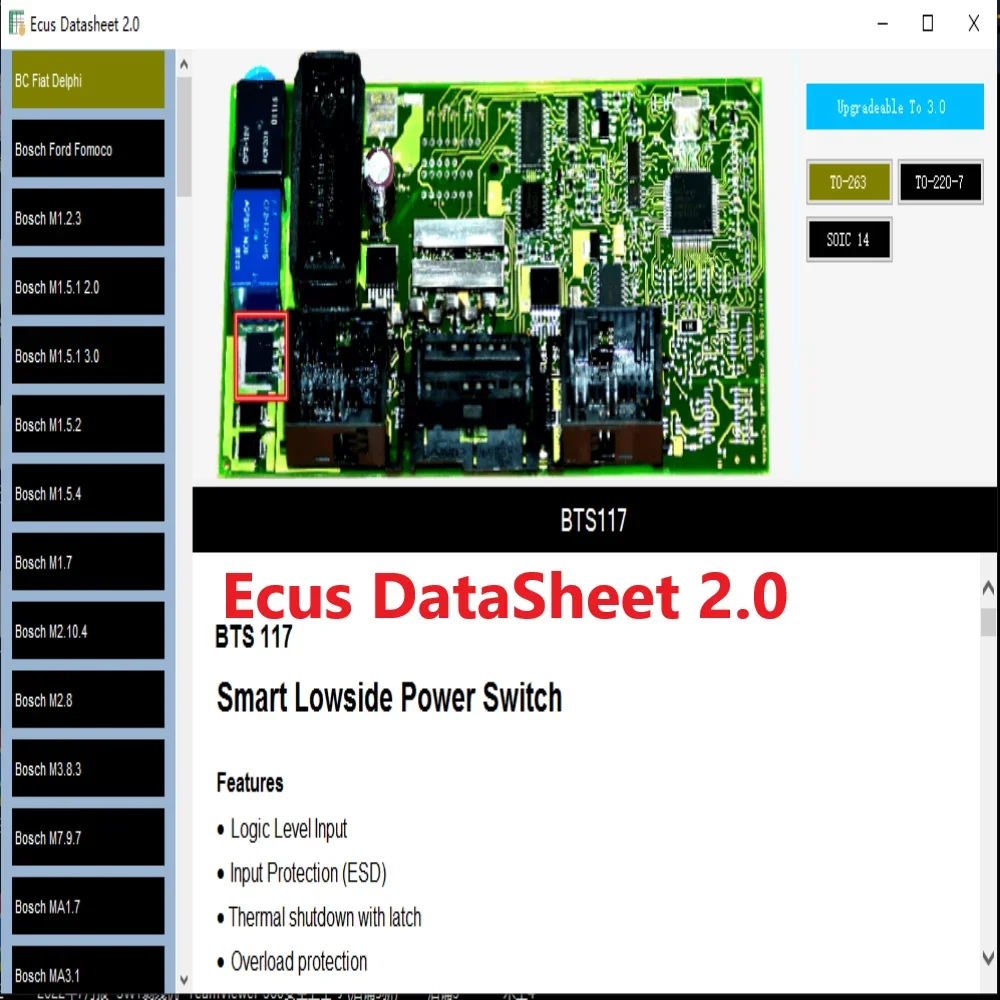

• Get access to thousands of ECU schematics with detailed electronic component info.

• Perfect for identifying burnt microcircuits and common faulty components.

• Find replacements with cross-reference analogs.

• Includes controller info, keys, and more!

🔎 A complete computer repair guide for automotive ECU professionals and enthusiasts.

🛠️ Key Features

✅ Displays frequently failing components
✅ Shows replacement alternatives (analogs)
✅ Includes rare and complex ECUs
✅ Supports Bosch, Denso, IAW, Siemens, Multec, and more
✅ Organized by ECU type with advanced search options

📚 ECU Support List Includes:

🔧 Bosch:

• M1.2.3, M1.5.1 (2.0 & 3.0), M1.5.2, M1.5.4, M1.7

• M2.10.4, M2.8, M3.8.3, M7.9.7

• MA1.7, MA3.1, ME17.5.20, ME17.5.24, ME17.9.X

• ME7.4.4, ME7.4.9, ME7.5, ME7.5.10, ME7.9.6, ME7.9.7, ME7.9.9

• MEG17.9.12, MP5.2, MP7.2

• EDC15C13, EDC15C2, EDC15C3, EDC15C6, EDC15C7, EDC16 (Iveco, S10, C39, VW), EDC17C54 Amarok

• MED9.1.1, ME2.8, EDC7, EDC16U1, EDC16C2, EDC16C31, EDC16CP31, EDC17C01, EDC17C46, EDC17C08

• PSA SID208

🔧 Denso:

• 1KZ-TE, 1ZZ-FE (3 & 4 plugs), Hilux, Nissan

🔧 IAW:

• 1ABG, 1AP, 1AVB, 1AVI, 1AVP, 1AVS

• 1G7, 48P2, 4AFB, 4AFR, 4AVP, 4BV

• 4CF, 4CFR, 4GV, 4SF, 4SV

• 5NP2, 5NR2, 6LPB, 7GF, G7/G8/8R

🔧 Siemens / Multec / Valeo:

• EMS3134, SIM32, Simos 2.1

• Sirius 32, SL96

• Multec Agile, Captiva, Delphi Chana, F, H BCM, HSFI 2.3, MPFI

• Valeo V42

🔧 Others:

• Digifant 1.74 / 1.82

• Mercedes PLD, ML 430

• Mitsubishi Pajero IO

• MJD 8F3, MJD 602

• Hyundai Grand-i10

• Chevrolet N300

• EDC16u34

💾 Whether you’re a professional or a serious enthusiast, ECU Data Sheet 2.0 is your essential tool for reliable ECU diagnosis and repair!
